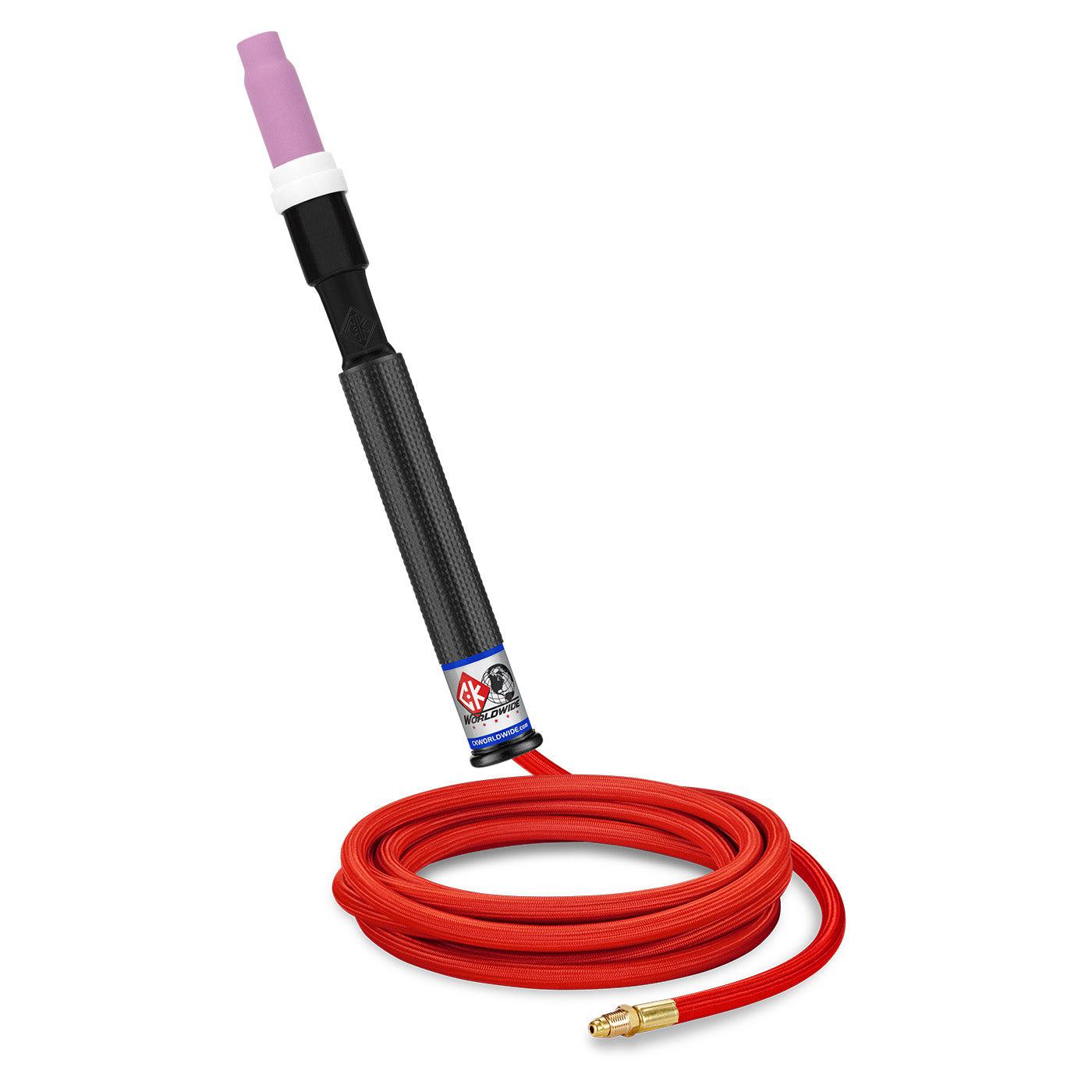

The CK 17 series TIG torches are the world's top - selling torches. Crafted with a hardened brass alloy head, they minimize thread damage, prevent collet body galling and seizing. The large metal head insert ensures excellent cooling and a long lifespan. Equipped with Superflex cables, these torches feature the lightest and most flexible cable assemblies on the market. The silicon rubber hose with a nylon over - braid resists abrasion and remains flexible in cold conditions. Rated up to 150 amps, the 17 series torches accept CK's 3 series (10N) consumables.
Features:
- Capacity: 150 amps
- Duty cycle: 100% at 150 amps
- Length: 8 - 1/2 inches
- Weight: 3 ounces
- Rigid head design
- Pencil - style body
- One - piece Superflex cable assembly
- Efficient heat dissipation
- Hardened brass head
- Air - cooled
- Made in the USA
Specifications: Click to open and view the entire data sheet.
Using your CK 150A TIG torch is easy. First, make sure your power source is set to the correct amperage, up to 150 amps. Connect the Superflex cable to your machine properly. Since it's a pencil - style torch, hold it like a regular pencil for better control. When using, keep in mind the 100% duty cycle at 150 amps, don't overheat it. In cold environments, the flexible cable will still work great, but avoid bending it too sharply. For maintenance, check the hardened brass head regularly for any signs of thread damage. If there is any wear on the collet body, replace the consumables which are CK's 3 series (10N). Keep the torch clean and dry to ensure long - lasting performance.
